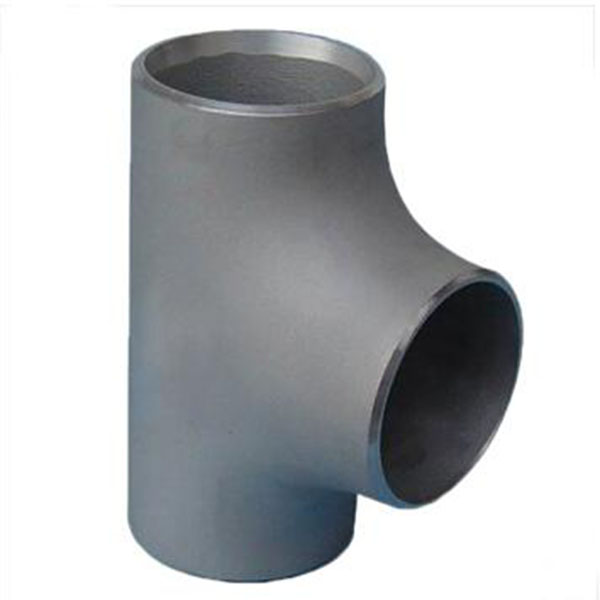

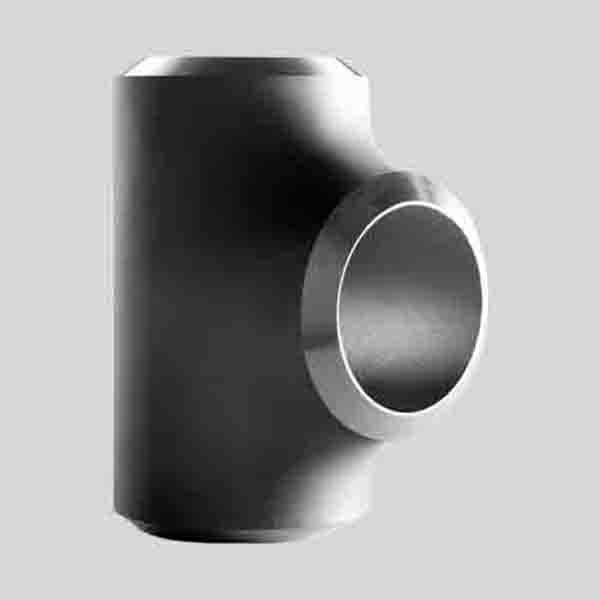

Tee

Short Description:

The tee is a pipe fitting and a pipe connector. The tee is usually used at the branch pipe of the main pipeline. The tee is divided into equal diameter and different diameter, and the ends of the equal diameter tee are all the same size; The size of the main pipe is the same, while the size of the branch pipe is smaller than that of the main pipe. For the use of seamless pipes to manufacture tee, there are currently two commonly used processes: hydraulic bulging and hot pressing. Divided into electric standard, water standard, American standard, German standard, Japanese standard, Russian standard, etc.


Product Detail

Product Tags

Standard

JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0518-2002
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990

Size

Seamless Size: 1/2"~24"DN15~DN600
Seamed Size: 4"~78" DN150~DN1900

Wall Thickness

sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140 , sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max Wall Thickness: 150mm

Material

Carbon Steel : ASTM/ASME A234 WPB-WPC
Alloy: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless Steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347 -347H
Low Temperature Steel: ASTM/ASME A402 WPL 3-WPL 6
High Performance Steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Aluminum:1050/1060/3003/5052/2011/2024/2A12/3A21/6061/ 6063/6068/7075/LY12/7005

Production Process

Using bending, extrusion, pushing, molding, machining, etc.

Application Industry

Our tee is widely used in many industrial fields, such as power, oil and gas, petrochemical, chemical, shipbuilding, heating, paper, metallurgy, etc.

Parameters of Tee

  Production range
seamless tee seamed tee
outer diameter 1/2"24" 4"78"
wall thickness 2mm150mm
product type Equal diameter tee, reducing tee

We are a professional tee manufacturer in China, which can provide you with a full range of industrial pipe fittings. At the same time, we also provide industrial pipes, industrial flanges, etc., which conform to ASME B16.9, ISO, API, EN, DIN, BS , JIS, GB and other standards, are widely used in Russia, Italy, Brazil, Saudi Arabia, Singapore, South Korea, India, Egypt and other countries and regions. If you need such industrial pipe fittings, please contact us Bar!
