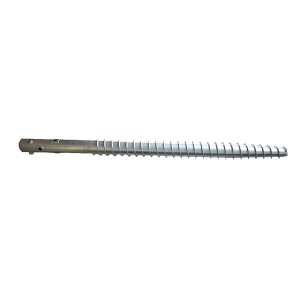

Ground Pile Series I
Technical Data Specification: Ground screws F76 x1600 /1800/2000mm Length Usual type: 1600 /1800 /2000mm ( 550mm-4000mm ) Outer Diameter 76mm (or 48 /60 /68 /76 / 89mm) Pipe thickness 2.5 / 3.0 / 3.5 / 3.75 / 4.0 mm Depth 1100 /1300 /1500mm Material Q235 ISO630 Fe A / DIN EN10025Fe 360 B Surface Treatment Hot dip galvanized to DIN EN ISO 1461-1999. Top Design: Flange ( or 3*M16) Screw spacing 40 / 60 mm Packing on steel pal...
